Hydraulic and pneumatic hoses are critical components in various industrial and mechanical applications. Both types of hoses are designed to transmit power, but they operate using different mediums and principles. Understanding the differences between hydraulic and pneumatic hoses is essential for selecting the right type for specific applications, ensuring efficiency, safety, and longevity of the system. In this article, Renflo Hydraulic Hose Service delves into the distinctions between these two types of hoses, covering their fluid mediums, pressure ranges, construction, applications, temperature resistance, and maintenance requirements.
Fluid Medium: Liquid vs. Gas
The primary distinction between hydraulic and pneumatic hoses lies in the type of fluid they carry. Hydraulic hoses are designed to transmit power using liquids, most commonly hydraulic oil. This fluid medium allows for precise control and high power transmission, making hydraulic hoses suitable for heavy-duty applications. In contrast, pneumatic hoses carry compressed air or other gases. The use of gases makes pneumatic systems ideal for applications requiring rapid movement and less force. The choice of fluid medium directly influences other characteristics of the hoses, including their construction and operational parameters.
Pressure Ranges: High vs. Low
Another significant difference between hydraulic and pneumatic hoses is the pressure at which they operate. Hydraulic systems typically function at much higher pressures, often ranging from 1,000 to 5,000 pounds per square inch (psi) or more. This high-pressure capability allows hydraulic hoses to transmit substantial force, which is necessary for tasks such as lifting heavy loads or operating large machinery. On the other hand, pneumatic systems usually operate at lower pressures, around 100 to 150 psi. This lower pressure range is sufficient for applications that prioritize speed and precision over raw power, such as in air tools and automated systems.
Construction: Materials and Design

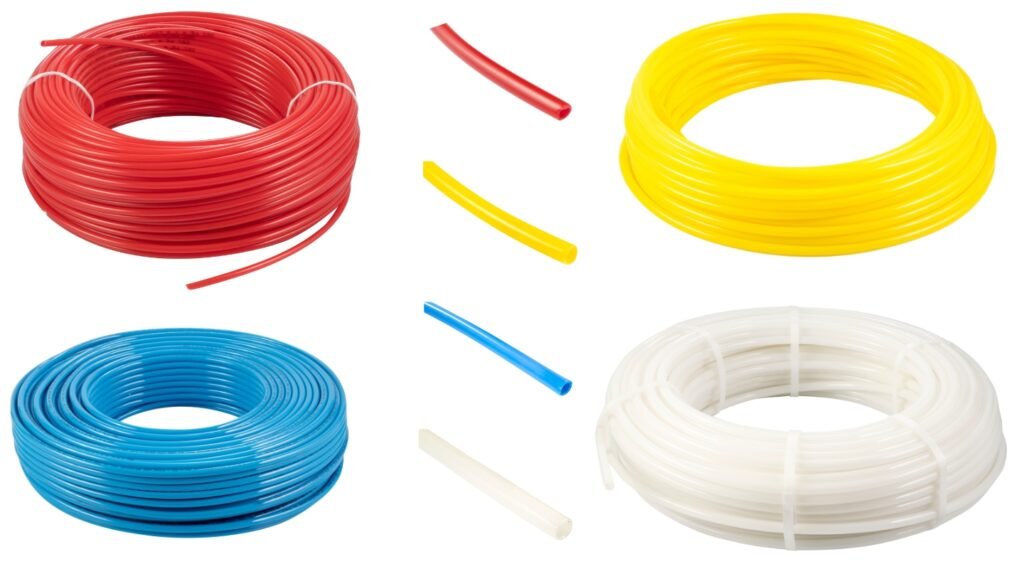

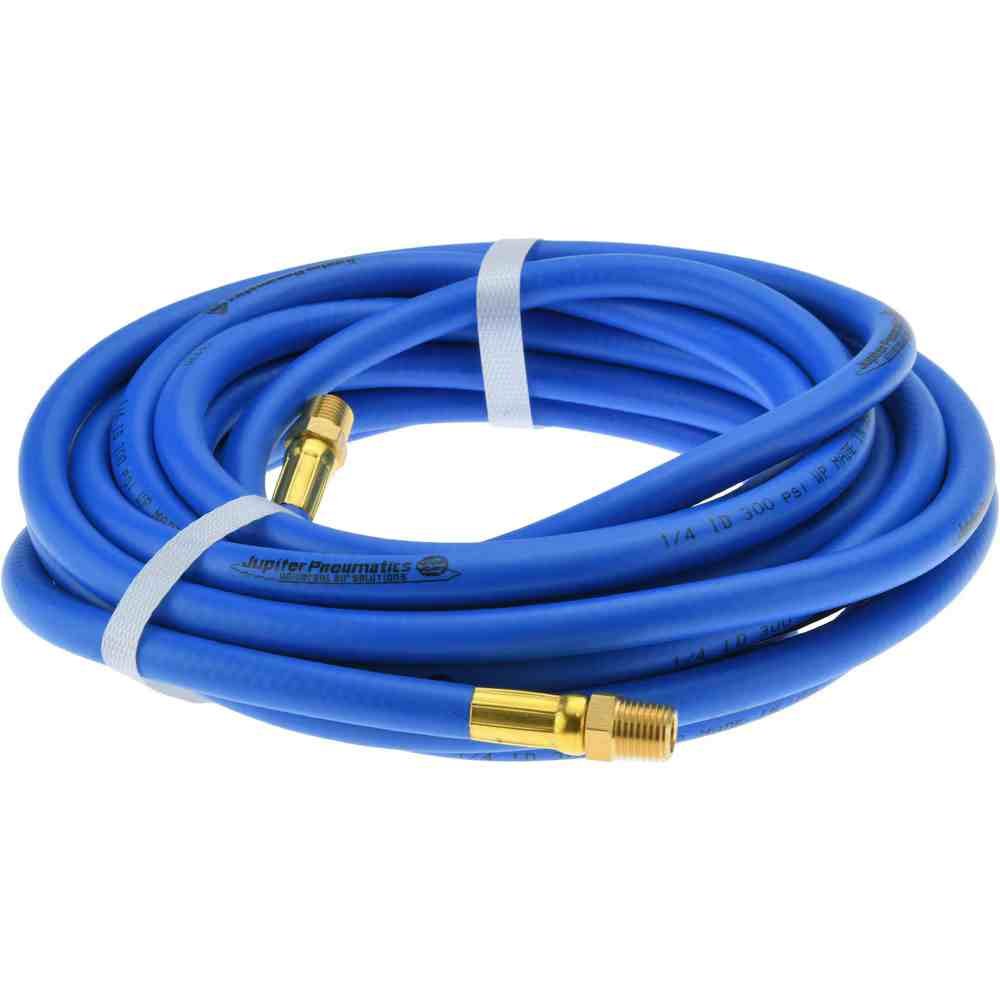

The construction of hydraulic and pneumatic hoses reflects their different operational requirements. Hydraulic hoses are built to withstand high pressures and harsh environments. They typically consist of multiple layers, including an inner tube made of synthetic rubber, a reinforcement layer of braided or spiral wire, and an outer protective layer. This robust construction ensures durability and resistance to abrasion, chemicals, and extreme temperatures. Pneumatic hoses, however, are generally lighter and more flexible. They are often made from materials such as polyurethane, polyethylene, or nylon, which provide the necessary flexibility and ease of movement for pneumatic applications. The simpler construction of pneumatic hoses is adequate for their lower pressure and less demanding operating conditions.
Applications: Heavy-Duty vs. Precision Tasks
Hydraulic and pneumatic hoses are suited to different types of applications based on their characteristics. Hydraulic hoses are commonly used in heavy-duty applications where high power and force are essential. Examples include construction equipment like excavators and cranes, industrial machinery, and automotive systems such as brake and power steering systems. These applications benefit from the precise control and substantial force that hydraulic systems provide. In contrast, pneumatic hoses are ideal for tasks requiring speed, precision, and flexibility. They are frequently used in air tools, automation systems, and control systems in various industries. Pneumatic systems are particularly valued in applications where cleanliness is crucial, such as in food processing and pharmaceutical manufacturing, as they use clean, dry air.
Temperature Resistance: Wide vs. Moderate Range
Temperature resistance is another factor that differentiates hydraulic and pneumatic hoses. Hydraulic hoses are designed to operate in a wide range of temperatures, both high and low. This capability is essential for applications that expose hoses to extreme environmental conditions, such as outdoor construction or industrial processes involving high heat. The materials used in hydraulic hoses, including synthetic rubber and reinforced wire, provide the necessary resilience to maintain performance under varying temperatures. Pneumatic hoses, on the other hand, typically operate at ambient temperatures and have less stringent temperature requirements. While they can handle moderate temperature variations, they are not intended for extreme temperature conditions. This difference reflects the less demanding nature of many pneumatic applications.
Maintenance Requirements: Durability vs. Simplicity
The maintenance requirements for hydraulic and pneumatic hoses also vary. Hydraulic hoses, due to their high-pressure operation and exposure to harsh conditions, require regular inspection and maintenance to prevent failures. This includes checking for signs of wear, leaks, and ensuring that the hoses are properly installed and secured. Hydraulic systems also need regular fluid checks and changes to maintain optimal performance. Pneumatic hoses generally have simpler maintenance needs. The lower pressures and less demanding conditions mean that pneumatic hoses are less prone to wear and damage. However, it is still important to regularly inspect them for leaks, kinks, and signs of wear, especially in critical applications where reliability is paramount.
Safety Considerations: High-Stakes vs. Routine Precautions
Safety is paramount in any industrial setting, and the safety protocols for hydraulic and pneumatic hoses differ due to their operational characteristics. Hydraulic systems operate under high pressure, posing a greater risk of catastrophic failure if a hose bursts or leaks. The release of hydraulic fluid under high pressure can cause serious injury or damage to equipment. Therefore, stringent safety measures are necessary, including the use of pressure relief valves, regular maintenance checks, and ensuring proper hose installation and routing to avoid sharp bends and abrasion. In contrast, pneumatic systems, operating at lower pressures, present fewer risks. However, precautions are still needed to prevent air leaks, which can reduce system efficiency and lead to unexpected tool or system failure. Ensuring connections are secure and using appropriate hose fittings are essential safety practices in pneumatic systems.
Environmental Impact: Fluid Leakage vs. Air Emissions
The environmental impact of hydraulic and pneumatic hoses is an important consideration, particularly in industries focused on sustainability. Hydraulic hoses, when they leak, release hydraulic fluid into the environment, which can contaminate soil and water sources. This necessitates careful handling, regular inspection, and immediate repair or replacement of faulty hoses to minimize environmental damage. Proper disposal and recycling of hydraulic fluids and hoses are also crucial to reduce environmental footprint. On the other hand, pneumatic hoses use air as their working fluid, which is naturally abundant and does not pose a contamination risk. However, inefficient pneumatic systems can lead to increased energy consumption and higher operational costs. Ensuring systems are well-maintained and optimized for energy efficiency helps mitigate this environmental impact.
Cost Considerations: Upfront Investment vs. Operational Expenses
The cost associated with hydraulic and pneumatic hoses varies, influencing the choice of system for different applications. Hydraulic systems generally require a higher upfront investment due to the need for robust, high-pressure hoses, complex components, and specialized fluids. The cost of maintenance and potential environmental cleanup in case of leaks also adds to the overall expense. However, the high power and efficiency of hydraulic systems can justify these costs in heavy-duty applications. Pneumatic systems, while often less expensive to install and maintain, may incur higher operational costs due to energy consumption. Air compressors and the need for clean, dry air can add to the operational expenses. Evaluating the total cost of ownership, including installation, maintenance, and operational expenses, is essential for making an informed decision between hydraulic and pneumatic systems.
System Components: Complexity vs. Simplicity
The complexity of hydraulic and pneumatic systems also sets them apart. Hydraulic systems are generally more complex, comprising numerous components such as pumps, reservoirs, valves, filters, and high-pressure hoses. This complexity allows for precise control and the ability to handle high forces, but it also means more potential points of failure and higher maintenance requirements. Pneumatic systems, by contrast, are simpler, typically involving fewer components like air compressors, regulators, and low-pressure hoses. The simplicity of pneumatic systems translates to easier installation, maintenance, and troubleshooting. This makes pneumatic systems attractive for applications where ease of use and reliability are key considerations.
Flexibility and Adaptability: Rigidity vs. Versatility
Flexibility and adaptability are important factors in the choice of hose systems. Hydraulic hoses, due to their construction and the need to withstand high pressures, are generally less flexible and more rigid. This can limit their use in applications requiring frequent movement or tight installation spaces. However, their rigidity provides stability and durability in demanding environments. Pneumatic hoses, being lighter and more flexible, offer greater versatility. They can easily be routed through tight spaces and are well-suited for applications requiring frequent movement or adjustments. This flexibility makes pneumatic hoses ideal for robotics, automated systems, and tools where ease of movement is crucial.
Noise Levels: Quiet Operations vs. Potential Noise
Noise levels generated by hydraulic and pneumatic systems can impact workplace environment and safety. Hydraulic systems, when properly maintained, tend to operate quietly. The use of hydraulic fluids helps dampen noise, making hydraulic systems suitable for environments where noise reduction is important. However, poor maintenance or leaks can lead to noise issues. Pneumatic systems, on the other hand, can be noisier due to the operation of air compressors and the release of compressed air. Noise can be mitigated by using silencers, mufflers, and sound-dampening materials, but managing noise in pneumatic systems remains a consideration. Ensuring proper system design and maintenance can help minimize noise levels and create a more comfortable working environment.
Durability and Longevity: Heavy-Duty Resilience vs. Lightweight Efficiency
Durability and longevity are crucial factors in determining the suitability of hydraulic and pneumatic hoses for specific applications. Hydraulic hoses are designed for heavy-duty resilience, able to withstand high pressures and harsh environmental conditions. This makes hydraulic hoses ideal for long-term use in demanding applications, although they require regular maintenance to ensure their longevity. Pneumatic hoses, while not as robust as hydraulic hoses, offer lightweight efficiency. They are constructed from materials like polyurethane, polyethylene, or nylon, which provide flexibility and ease of handling. Their lighter construction makes them easier to install and replace, and with proper maintenance, they can offer a reliable and efficient solution for many industrial applications.
Energy Efficiency: Hydraulic Power vs. Pneumatic Speed
Energy efficiency is a key consideration when choosing between hydraulic and pneumatic hoses, as it impacts both operational costs and environmental sustainability. Hydraulic systems are known for their powerful and efficient transmission of force. The incompressibility of hydraulic fluids allows for precise control and minimal energy loss, making hydraulic systems highly efficient for tasks requiring significant force and power. Pneumatic systems, in contrast, are valued for their speed and simplicity. They use compressed air, which can be easily stored and released to provide quick and responsive power. Balancing the speed and responsiveness of pneumatic systems with their energy consumption is essential for maximizing efficiency in various industrial applications.
Conclusion
In summary, hydraulic and pneumatic hoses serve distinct functions in fluid power systems, each with its own set of advantages and limitations. Hydraulic hoses, with their ability to handle high pressures and transmit significant force, are indispensable in heavy-duty applications. Pneumatic hoses, offering speed, precision, and flexibility, excel in tasks that require rapid movement and less force. Understanding the differences between these two types of hoses, including their fluid mediums, pressure ranges, construction, applications, temperature resistance, and maintenance requirements, is crucial for selecting the right hose for the job and ensuring the efficiency and longevity of the system.
